◆ Portable structure design, can be equipped with an independent operating table.
◆ High-speed parallel detection data collection .
◆ Built-in multiple image processing algorithms, images can be transformed freely.
◆ EI-TIP (Emergency Image Projection) processing function.
◆ With multi-functional operation interface.
◆ Built-in USB transfer function for JPG & BMP formats.
◆ Extremely low leakage radiation dose rate, fully in line with domestic and international health and safety standards .
◆ Channel size: 500 mm (W) x 300 mm (H)

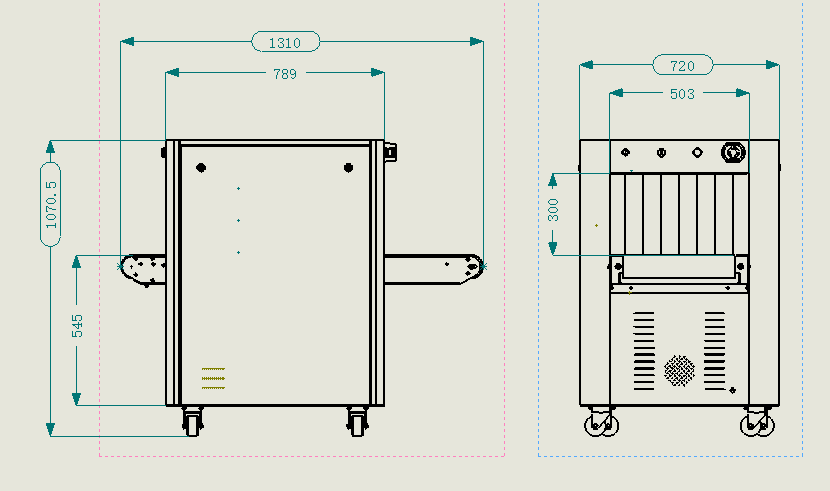

◆ Dimensions: 1300 mm (L) x 720 (W) x 1070 mm (H)
◆ Penetration ： 14mm steel plate
◆ Conveyor belt speed: 0.2 5 m/s
◆ Maximum load: 150 kg (evenly distributed)
◆ Working temperature/humidity: 0C ~ +45C/20% ~ 95% (without refrigeration equipment)
◆ Storage temperature/humidity: 40C ~ +60C/20% ~ 95% (without refrigeration equipment)
◆ System noise: <55dB
◆ Display: 19〃 LCD display ◆ Power supply voltage: AC220V (+10% ～ -15%) 50+3 (Hz)
◆ Maximum power: about 0.46 (KVA) ◆ Single examination dose: < 1.0μGy
◆ Beam direction: bottom illumination ◆ Tube current: 0.4～1.2mA (adjustable)
◆ Tube voltage: 80 KV (adjustable) ◆ Cooling/working cycle: sealed oil cooling/100%
◆ Beam emission angle: 60°
