5030C–Dual-energy X-ray Baggage Scanner

Product Description

5030C dual energy X-ray security inspection system is an intelligent security inspection system that can detect organic inorganic mixed and light metals and has a reasonable appearance and structural design to maintain high efficiency of operation. It adopts a new solution high operating efficiency clear image characteristics and integrates TIP function. The product is used in public facilities such as hotels stations hospitals schools museums hotels supermarkets concerts etc.

hd ptz camera 30dv 1


◆ Portable structure design, can be equipped with an independent operating table.
◆ High-speed parallel detection data collection .
◆ Built-in multiple image processing algorithms, images can be transformed freely.
◆ EI-TIP (Emergency Image Projection) processing function.
◆ Built-in automatic diagnosis function, monitoring and display.
◆ With multi-functional operation interface.
◆ Built-in USB transfer function for JPG & BMP formats.
◆ Extremely low leakage radiation dose rate, in line with domestic and international health and safety standards .

◆ Channel size: 500 mm ( width ) x 300 mm ( height )

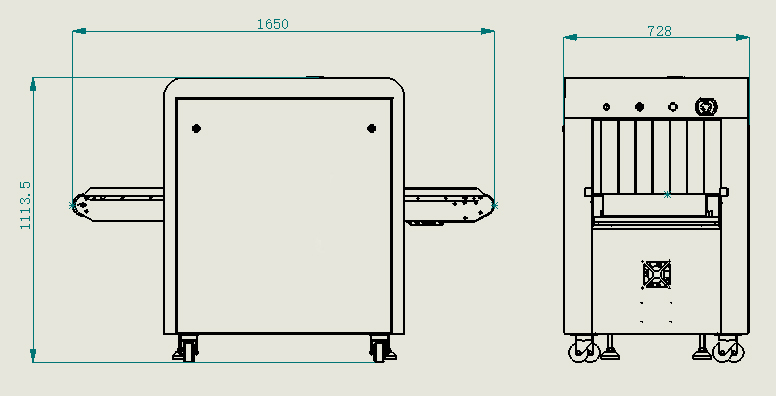

◆ Dimensions: 1650 mm ( length ) x 728 mm ( width ) x 1114 mm ( height )
◆ Penetration ： 43mm steel plate
◆ Line resolution: metal wire with diameter ≤ 0.0787mm
◆ Penetration resolution: bottom viewing angle ≤ 0.160㎜
◆ Spatial resolution: Bottom viewing angle horizontal ≤ 0.8MM Bottom viewing angle vertical ≤ 0.8MM
◆ Conveyor belt speed: 0.2 5 m/s
◆ Maximum load: 150 kg (evenly distributed)
◆ Working temperature/humidity: -20° C ~ + 60 C ° /20% ~ 95% (without refrigeration equipment)
◆ System noise: <55dB
◆ Display: 19〃 LCD display ◆ Power supply voltage: AC220V (+10% ～ -15%) 50+3 (Hz)
◆ Maximum power: about 0.46 (KVA) ◆ Single examination dose: < 1.0μGy

◆ Beam direction: bottom illumination ◆ Tube current: 0.4～1.2mA (adjustable)
◆ Tube voltage: 1 4 0KV (adjustable) ◆ Cooling/working cycle: sealed oil cooling/100%
◆ Beam emission angle: 60°
