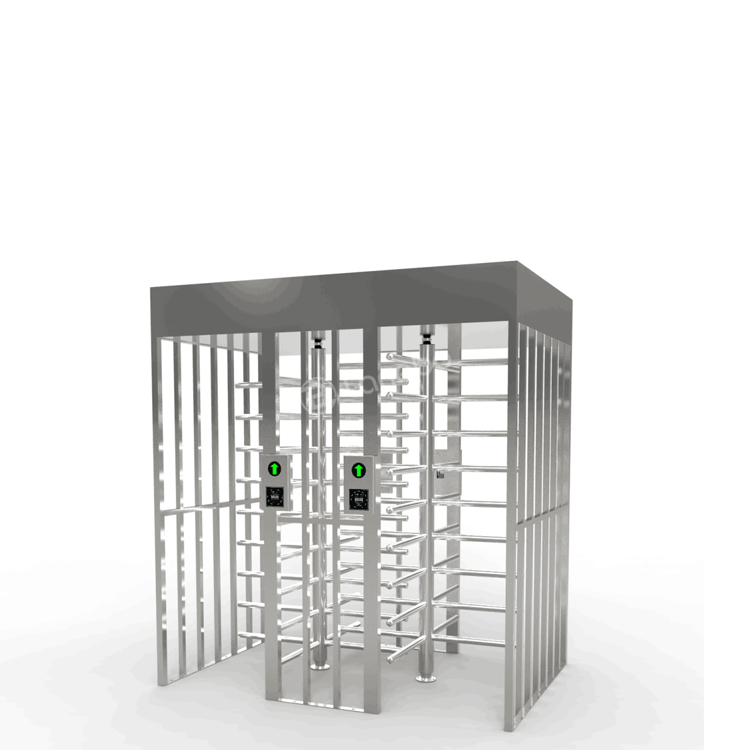

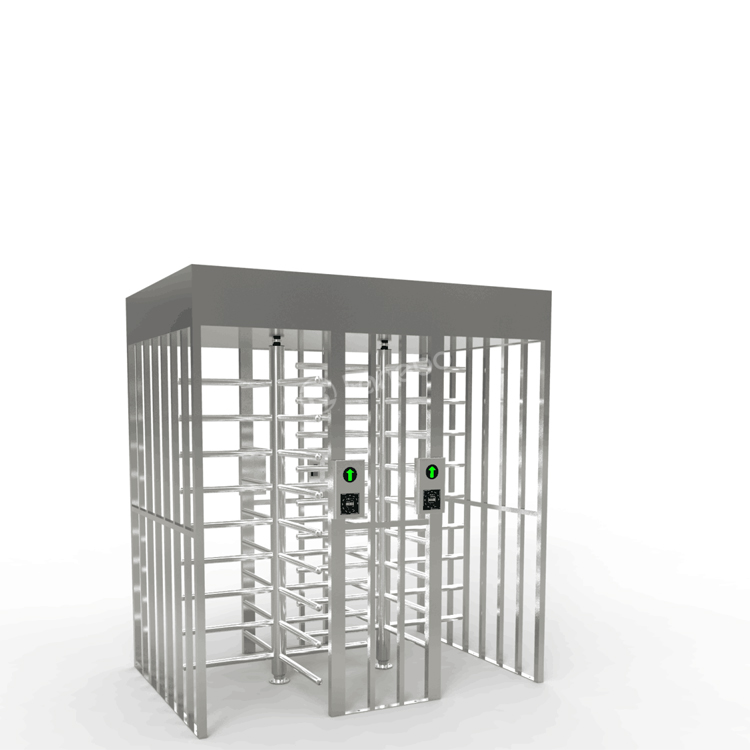

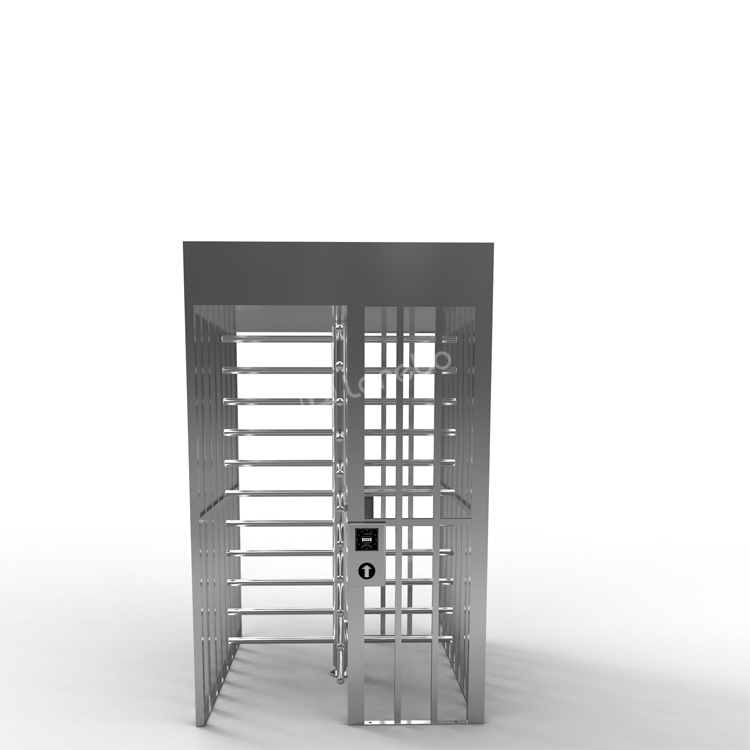

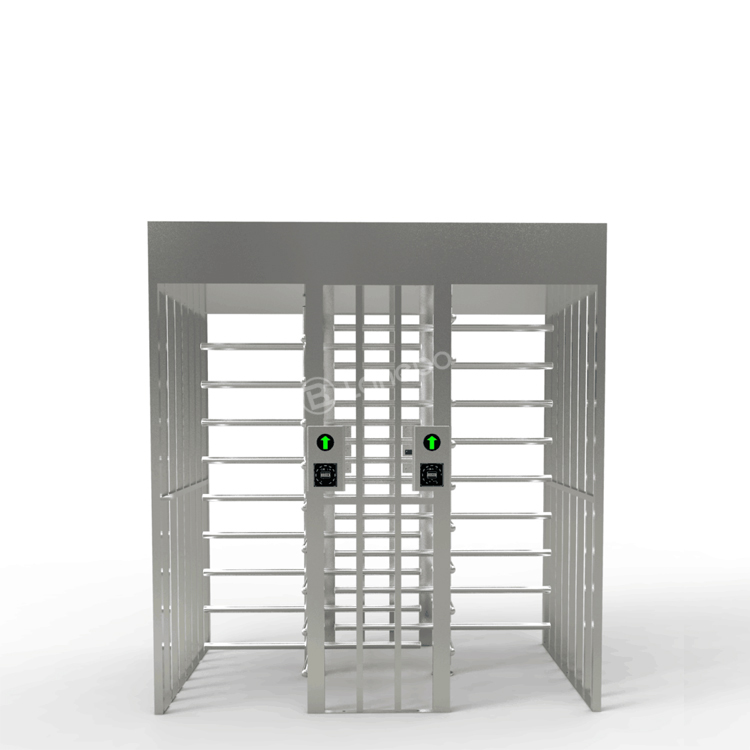

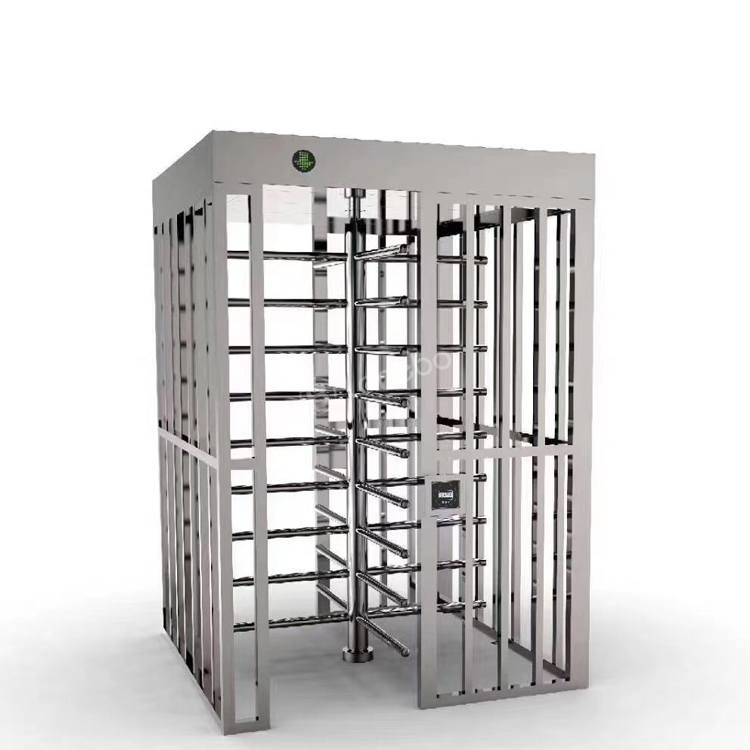

Full height turnstile is the strongest turnstile which can make stricter force control than others type. Suitable for use in places with high safety protection requirements.
| Model NO | LB-Q04BD |
| Power voltage | AC220±10%,50HZ |
| Arm turn degree | 90° |
| Driving voltage | DC24V |
| External Dimension | 1400*1400*2300mm |
| Operation condition | -15℃ ~ 60℃ |
| Material | 304 drawing stainless steel |
| Cover thickness | 1.2mm |
| Humidity | ≤95%;None-condensation |
| Turn direction | bidirectional or unidirectional(Optional) |
| Input | Open singal or 12V pulse>100ms |
| Work environment | Indoor、Outdoor |
| Working Current | ≤2000mA |
| IP level | IP43 |
| Standard stick length | 530mm |
| Channel width | 620 mm |
| Pass speed | ≤ 20 person/minutes |
| Service life | ≥ 6 million times |
