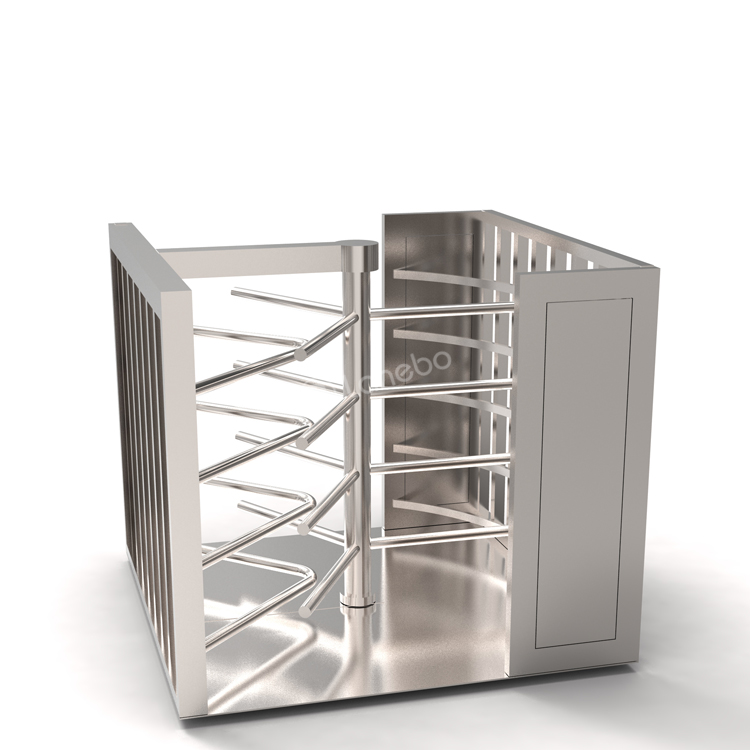

Full height turnstile is the strongest turnstile which can make stricter force control than others type. Suitable for use in places with high safety protection requirements.
| Model NO | LB-H02BD |
| Power voltage | AC220±10%,50HZ |
| Arm turn degree | 120° |
| Driving voltage | DC24V |
| External Dimension | 1500*1500*980mm |
| Operation condition | -15℃ ~ 60℃ |
| Material | 304 drawing stainless steel |
| Cover thickness | 1.5mm |
| Humidity | ≤95%;None-condensation |
| Turn direction | bidirectional or unidirectional(Optional) |
| Input | Open singal or 12V pulse>100ms |
| Work environment | Indoor、Outdoor |
| Working Current | ≤2000mA |
| IP level | IP43 |
| Standard stick length | 600mm |
| Channel width | 700 mm |
| Pass speed | ≤ 25 person/minutes |
| Service life |
≥ 6 million times |
