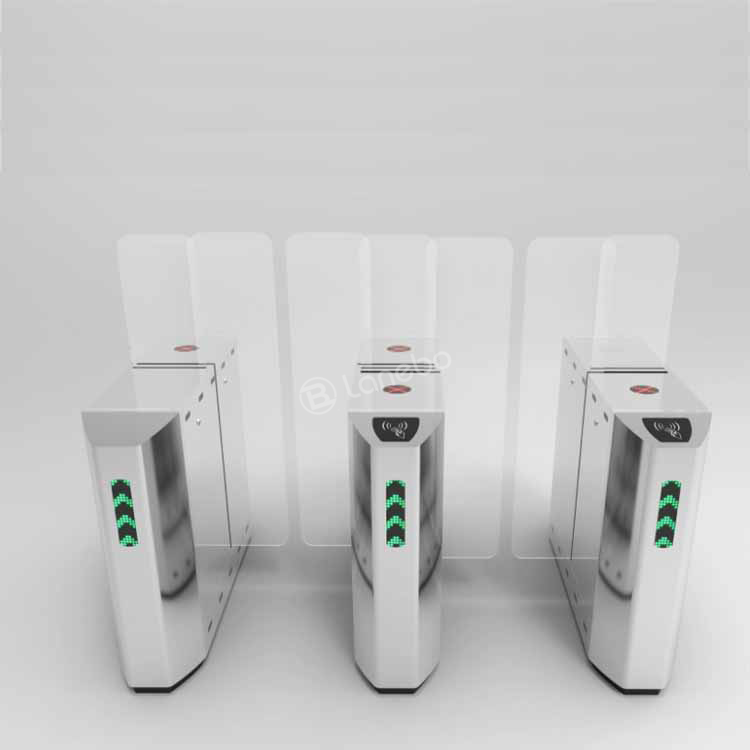

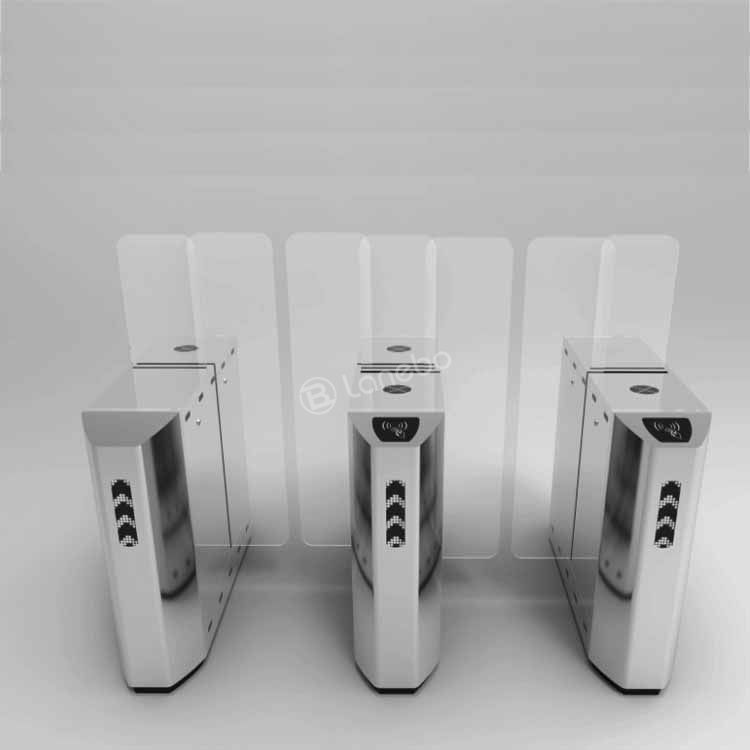

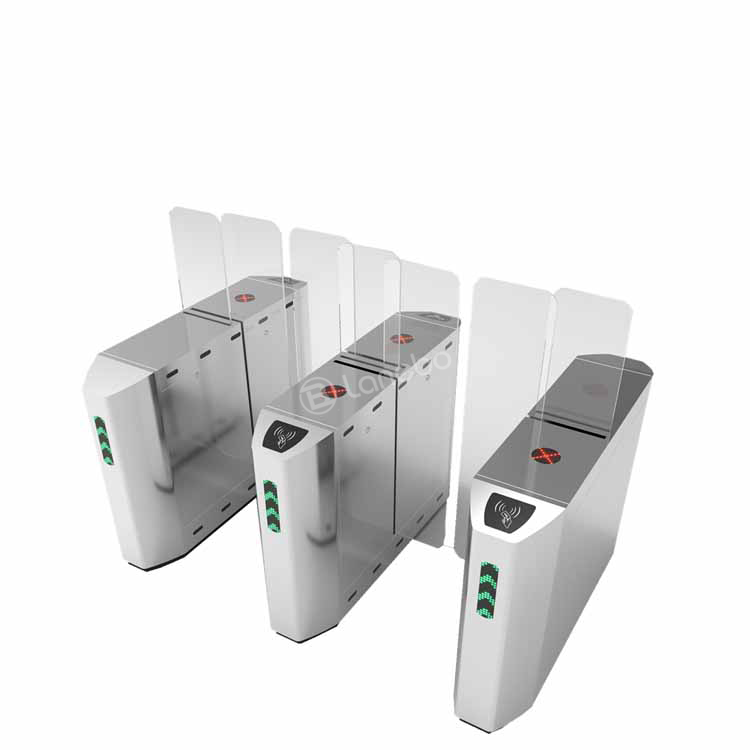

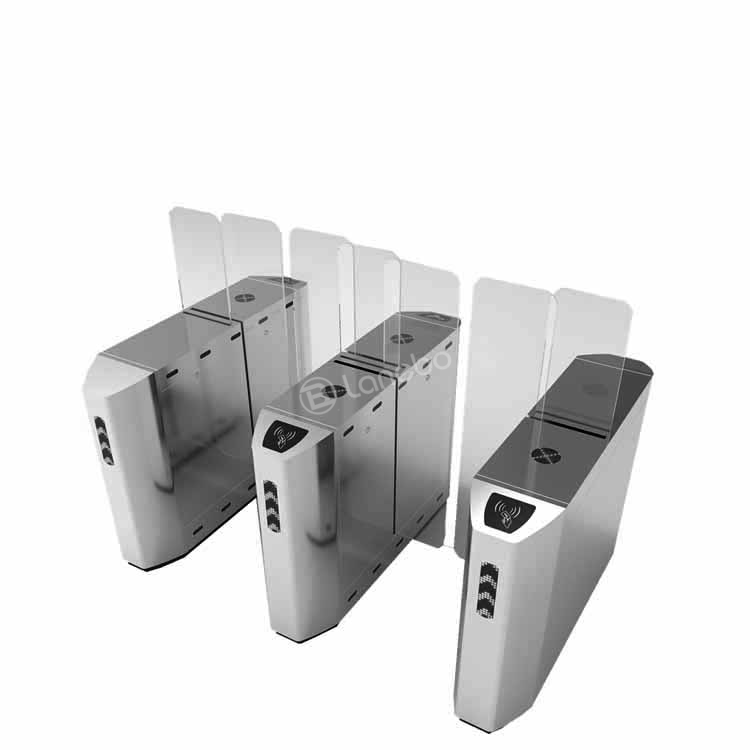

LB-P01BD Sliding barrier
Product Description
High arm turnstile gate could be total Prevent pedestrians from jumping over.
| Model NO | LB-P01BD |
| Size | 1400*320*1000 mm |
| Channel width | ≤550 mm |
| Power input | AC 100-240V,50/60Hz |
| Working voltage | 24V |
| Operation condition | -15℃ ~ +60℃ |
| Structure | 304 Stainless steel |
| Relative humidity | ≤ 95%, None-condensation |
| Open direction | Unidirectional or bidirectional |
| Input signal | Open signal or 12v pulse>100ms; |
| Communication interface | RS485 |
| IP Degree | IP43 |
| Pass speed | ≤30 person/minutes |
| Gate opening and closing time | 0.5s |
| Service life | ≥ 3 million times |
| Support Access Control system |
ID/IC card, Fingerprint, Face recognition, Barcode/QR code, phone app, ESD system, Visitor system, etc. |
