The high-end model LB-F300is a multiple-zone WTMD specifically designed for very high sensitivity applications, such as correctional institutions and industrial loss prevention. It provides pinpointing of individual and multiple metal targets from the shoe level to the crossbar, detects and visually indicates the location and number of possible threat objects. This detector features one-touch self installation, a function that aids in setting up the detector through an automated step-by-step procedure.
Sensitivity Level: 500 grades(adjustable)
Distinct Sensitivity Level: 1000 grades(adjustable)
Power Consumption: <20 W
Security Detection Program: 60(built-in)
Pass through Rate: 0.4m/s~1.2m/s
Working Frequency Range: 1~99 bands

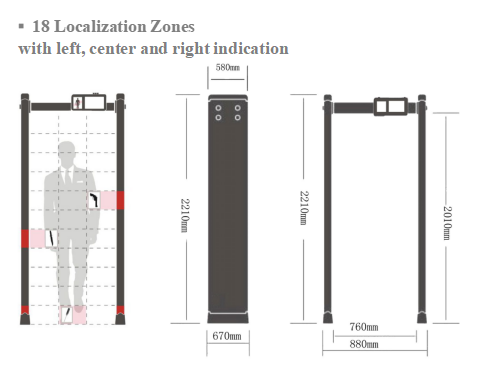

Vertical Channel Size: 2010 x 760 mm
Vertical Dimension: 2210(H) x 880(W) x 670(D)mm
Working Voltage: 100~240VAC, 50~60 Hz
Working Environment Temperature:-10℃-+45℃
Packing: 2290*330*770mm/ctn
N.W/G.W:47KG/54KG
Wooden case is optional
Ø
Accurate Detection
▶ Has 18 horizontal zones with individually 500 grades adjustable sensitivity.
▶ Capable of detecting a wide range of threat metal objects, even for a coin, when someone pass, the positions of the weapons on the person will be indicated by means of illuminated LEDs on both sides of panels. It can detect simultaneously more than three metals in different pasts of body.
Ø
Superior Design & Construction
▶ Completely Modular for quick installation.
▶ Overhead control unit with 7-inch LCD capacitive touch screen
▶ Traffic pacing stop and go lights
▶ The overall system is characterized by sturdy, reliable electronic and mechanical construction.
Ø
60 Built-in Security Detection Programs
▶ It is not easier to set the accurate security levels, users can choose directly from the known 60 embedded security
standards by the use of a range of possible sensitivity settings.
Ø
Interface Suppression
▶ 99 adjustable working frequency to adjust to immunity the potential effects from x-ray device, radio and
other electrical interface sources.
▶ Allows several units to be placed in close proximity (50 cm) to one another.
Ø
Audible and Visual Alarms & Acoustic Alarm Signaling System
▶ Audible alarm and visual LED lights signal when a target has been detected.
▶ Provide ability to randomly alarm on a selected range of 16 tones intensity levels.The wide 10 volume control
dynamic allows operation even in very noisy environment .(also support silent mode)
